[Class] Progress Indicator 처리용 Common Class

Progress Indicator 처리용 Common Class

SAPGUI_PROGRESS_INDICATOR



"SAPGUI_PROGRESS_INDICATOR"을 간편하기 사용하기 위해 Common Include를 만들어서 사용하고 있었습니다.

2023.05.10 - [ABAP/소스코드] - [Include] Progress Indicator 처리용 Common Include

[Include] Progress Indicator 처리용 Common Include



Include 방식이 신입 개발자들에게 설명하기도 편하고 사용성도 나쁘지 않았는데,

아무래도 자주 사용하는 기능이다 보니 좀더 간편하게 사용하고자 동일한 기능을 Class로 만들었습니다.

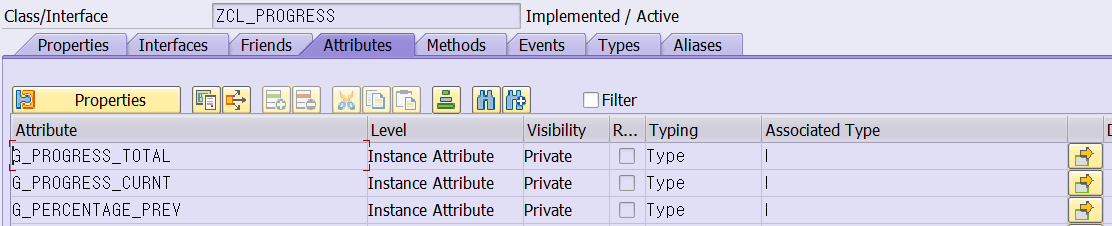

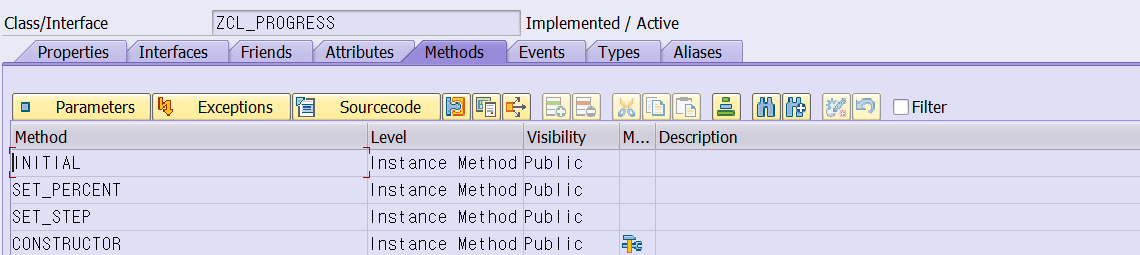

#1. ZCL_PROGRESS 구조

Method 3개와 전역번수 3개의 아주 간단한 클래스입니다.

#2. Class 소스코드

class ZCL_PROGRESS definition
  public
  final
  create public .

public section.

  methods INITIAL
    importing
      value(I_TOTAL) type I .
  methods SET_PERCENT
    importing
      value(I_TEXT) type ANY optional .
  methods SET_STEP
    importing
      value(I_TEXT) type ANY optional .
  methods CONSTRUCTOR
    importing
      value(I_TOTAL) type I optional .
protected section.
private section.

  data G_PROGRESS_TOTAL type I .
  data G_PROGRESS_CURNT type I .
  data G_PERCENTAGE_PREV type I .
ENDCLASS.



CLASS ZCL_PROGRESS IMPLEMENTATION.


* <SIGNATURE>---------------------------------------------------------------------------------------+
* | Instance Public Method ZCL_PROGRESS->CONSTRUCTOR
* +-------------------------------------------------------------------------------------------------+
* | [--->] I_TOTAL                        TYPE        I(optional)
* +--------------------------------------------------------------------------------------</SIGNATURE>
  method CONSTRUCTOR.
    INITIAL( I_TOTAL ).
  endmethod.


* <SIGNATURE>---------------------------------------------------------------------------------------+
* | Instance Public Method ZCL_PROGRESS->INITIAL
* +-------------------------------------------------------------------------------------------------+
* | [--->] I_TOTAL                        TYPE        I
* +--------------------------------------------------------------------------------------</SIGNATURE>
  method INITIAL.
    CLEAR: G_PROGRESS_CURNT, G_PERCENTAGE_PREV.
    G_PROGRESS_TOTAL = I_TOTAL.
  endmethod.


* <SIGNATURE>---------------------------------------------------------------------------------------+
* | Instance Public Method ZCL_PROGRESS->SET_PERCENT
* +-------------------------------------------------------------------------------------------------+
* | [--->] I_TEXT                         TYPE        ANY(optional)
* +--------------------------------------------------------------------------------------</SIGNATURE>
  method SET_PERCENT.
    DATA: LV_PROGRESS_TITLE TYPE STRING,
          LV_PERCENTAGE TYPE I,
          LV_PER_TEXT(10) TYPE C,
          LV_TEXT TYPE STRING.

   MOVE I_TEXT TO LV_TEXT.
   ADD 1 TO G_PROGRESS_CURNT.
   IF G_PROGRESS_TOTAL = 0.
     G_PROGRESS_TOTAL = 100.
   ENDIF.
   IF G_PROGRESS_CURNT <> 0.
     LV_PERCENTAGE = G_PROGRESS_CURNT * 100 / G_PROGRESS_TOTAL.
   ENDIF.
   IF LV_PERCENTAGE > 100.
     LV_PERCENTAGE = 100.
   ENDIF.
   IF LV_PERCENTAGE > G_PERCENTAGE_PREV.
     G_PERCENTAGE_PREV = LV_PERCENTAGE.
     WRITE LV_PERCENTAGE TO LV_PER_TEXT. CONDENSE LV_PER_TEXT.
     CONCATENATE '[' LV_PER_TEXT '%] ' ` ` LV_TEXT INTO LV_PROGRESS_TITLE.

     CALL FUNCTION 'SAPGUI_PROGRESS_INDICATOR'
       EXPORTING
         PERCENTAGE = LV_PERCENTAGE
         TEXT       = LV_PROGRESS_TITLE.
   ENDIF.
  endmethod.


* <SIGNATURE>---------------------------------------------------------------------------------------+
* | Instance Public Method ZCL_PROGRESS->SET_STEP
* +-------------------------------------------------------------------------------------------------+
* | [--->] I_TEXT                         TYPE        ANY(optional)
* +--------------------------------------------------------------------------------------</SIGNATURE>
  method SET_STEP.
    DATA: LV_PROGRESS_TITLE TYPE STRING,
          LV_PERCENTAGE TYPE I,
          LV_CUR_TEXT(10) TYPE C,
          LV_TOT_TEXT(10) TYPE C,
          LV_TEXT TYPE STRING.
   CLEAR : LV_CUR_TEXT, LV_TOT_TEXT.

   MOVE I_TEXT TO LV_TEXT.
   ADD 1 TO G_PROGRESS_CURNT.
   WRITE G_PROGRESS_CURNT TO LV_CUR_TEXT. CONDENSE LV_CUR_TEXT.
   IF G_PROGRESS_TOTAL = 0.
     G_PROGRESS_TOTAL = 100.
   ELSE.
     WRITE G_PROGRESS_TOTAL TO LV_TOT_TEXT. CONDENSE LV_TOT_TEXT.
   ENDIF.
   IF G_PROGRESS_CURNT <> 0.
     LV_PERCENTAGE = G_PROGRESS_CURNT * 100 / G_PROGRESS_TOTAL.
   ENDIF.
   IF LV_PERCENTAGE > 100.
     LV_PERCENTAGE = 100.
   ENDIF.

   IF LV_TOT_TEXT IS INITIAL.
     CONCATENATE '[' LV_CUR_TEXT '] ' ` ` LV_TEXT INTO LV_PROGRESS_TITLE.
   ELSE.
     CONCATENATE '[' LV_CUR_TEXT 'of' LV_TOT_TEXT '] ' ` ` LV_TEXT INTO LV_PROGRESS_TITLE.
   ENDIF.

   CALL FUNCTION 'SAPGUI_PROGRESS_INDICATOR'
     EXPORTING
       PERCENTAGE = LV_PERCENTAGE
       TEXT       = LV_PROGRESS_TITLE.
  endmethod.
ENDCLASS.

ABAP



#3. 사용 예시

REPORT YSANDBOX.
"Progress 오브젝트
DATA GCL_PROGRESS TYPE REF TO ZCL_PROGRESS.

START-OF-SELECTION.
  SELECT
    *
  FROM T001
  INTO TABLE @DATA(LT_T001).

  "PROGRESS 오브젝트 생성
  CREATE OBJECT GCL_PROGRESS.

  "Progress 전역 변수 초기화 및 최대값 입력
  GCL_PROGRESS->INITIAL( LINES( LT_T001 ) ).

  LOOP AT LT_T001 INTO DATA(LS_T001).
    "퍼센트 형식의 Progress 호출

    GCL_PROGRESS->SET_PERCENT( '처리중입니다...' ).

    WAIT UP TO '0.5' SECONDS.
  ENDLOOP.


* 또는 Object 생성시 최대값 설정하여 사용
DATA(LO_PROGRESS) = NEW ZCL_PROGRESS( 10 ).

DO 10 TIMES.
  LO_PROGRESS->SET_PERCENT( '진행중' ).
  WAIT UP TO 1 SECONDS.
ENDDO.

"Progress 전역 변수 초기화 및 최대값 변경
LO_PROGRESS->INITIAL( 20 ).
DO 20 TIMES.
  LO_PROGRESS->SET_PERCENT( '진행중' ).
  WAIT UP TO 1 SECONDS.
ENDDO.

ABAP
